Lang2Pose

✅ Tested on Ubuntu 22.04 with NVIDIA RTX 4090

Abstract

Lang2Pose is a modular robot control framework that interprets natural language commands for end-effector control and pick-and-place tasks. Built on ROS 2, the system integrates:

• Large Language Model (LLM): Converts natural language into structured robot actions.
• Perception Module: Uses FoundationPose for 6D object pose estimation from RGB-D input and segmentation masks.
• Motion Planning: Employs Lula IK for simulation in Isaac Sim and MoveIt 2 for real-world execution.

We validate Lang2Pose with both simulated and real robots — a Kinova Gen3 arm and a Robotiq 2F-85 gripper. Simulations leverage high-fidelity physics in Isaac Sim, while real-world experiments use fine-tuned YOLO/YOLO-seg models and Realsense RGB-D data. Lang2Pose enables intuitive language-driven manipulation and demonstrates robustness even under partial occlusion.

---

Insatllation Guide

🧰 Isaac Sim Container Environment

Please set up and run Isaac Sim using NVIDIA’s official container guide:

👉 Isaac Sim 4.2 — Container Installation & Run Guide

Checklist (quick sanity):

• NVIDIA Driver installed & GPU accessible from Docker
• nvidia-container-toolkit configured
• Run with GPU runtime and X11 forwarding (GUI)
• Accept EULA and privacy consent env vars set (as required by the doc)
• Adequate shared memory (/dev/shm) and proper volume mounts

Follow the exact steps and environment variables from the official doc for your OS/driver setup.

🤖 Robot USD File Setup

1. Download the robot USD file: 👉 Download Robot USD

2. Place the file at:

resources/assets/robot.usd

⚠️ Make sure the file is named exactly robot.usd!

🔑 API Key Setup

1. Create a .env file inside the following directory:

resources/llmagent/.env

2. Add your OpenAI API Key in the following format (replace with your actual key):

OPENAI_API_KEY=sk-xxxxxxx...

3. Make sure the file is named exactly .env and located in the resources/llmagent folder. This file will be automatically loaded inside the container at runtime.

🚀 Usage

1. Start the containers

   docker compose up -d

2. Enter the LLM agent container (for natural language input)

   docker exec -it llmagent bash

3. Wait for Isaac Sim to launch, then inside the simulator:

• Go to Window > Extensions > 3rd party > User
• Find aisl.robrain.extension under 3rd party
• Disable it once, then re-enable it

4. Finally, open:

• Isaac Examples → lang2pose
• Start the demo 🎉

🚧 Upcoming Features

• Vision-based Pick & Place: Integration with the perception module for language-guided pick-and-place tasks will be released soon.
• Real-World Demonstrations: Experiments with the physical robot setup will be provided shortly.

---

🎥 Demo Videos

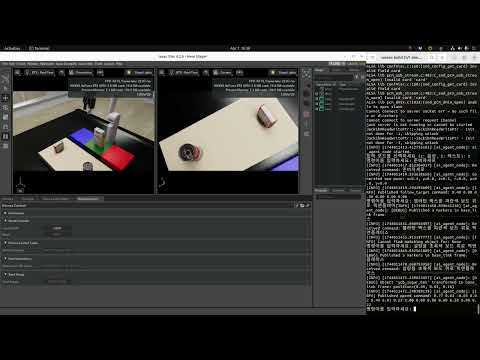

Simulation Demo

Real-World Demo
