5.2. Harbor Boost

Jump to bottom
av edited this page Jul 20, 2026 · 43 revisions

Handle: boost
URL: http://localhost:34131/

splash

boost is an optimising LLM proxy with OpenAI-compatible, Anthropic-compatible, and OpenAI Responses APIs.

Documentation

Features

OpenAI-compatible API

Acts as a drop-in proxy for OpenAI APIs, compatible with most LLM providers and clients. Boost can be used as a "plain" proxy to combine multiple LLM backends behind a single endpoint with a single API key.

Anthropic-compatible API

Boost can also accept requests in the Anthropic Messages API format. Any Anthropic SDK client can be pointed at Boost's URL, and Boost will convert the request to OpenAI format internally, route it through the normal proxy pipeline (modules, workflows, model routing), and convert the response back to Anthropic format.

This is enabled by default. See the API section below for endpoint details and usage examples.

OpenAI Responses API

Boost supports the OpenAI Responses API (/v1/responses), a newer alternative to Chat Completions. The Responses API uses a different input/output shape (input items and output items instead of messages) and a different streaming event format. Boost converts Responses API requests to Chat Completions internally, routes them through the normal pipeline, and converts results back to Responses API format.

This is enabled by default. See the API section below for endpoint details and usage examples.

Short overview of boost behavior

POST http://localhost:34131/v1/chat/completions

{
  "model": "llama3.1",
  "messages": [{ "role": "user", "content": "Tell me about LLMs" }]
}

Modules

Run custom code inside or instead of a chat completion, to fetch external data, improve reasoning, perform trace inference, and more.

POST http://localhost:34131/v1/chat/completions

{
  "model": "klmbr-llama3.1",
  "messages": [{ "role": "user", "content": "Suggest me a random color" }]
}

Boost comes with a lot of built-in modules with various functions. You can use them directly or as a base for your own creations.

markov concept

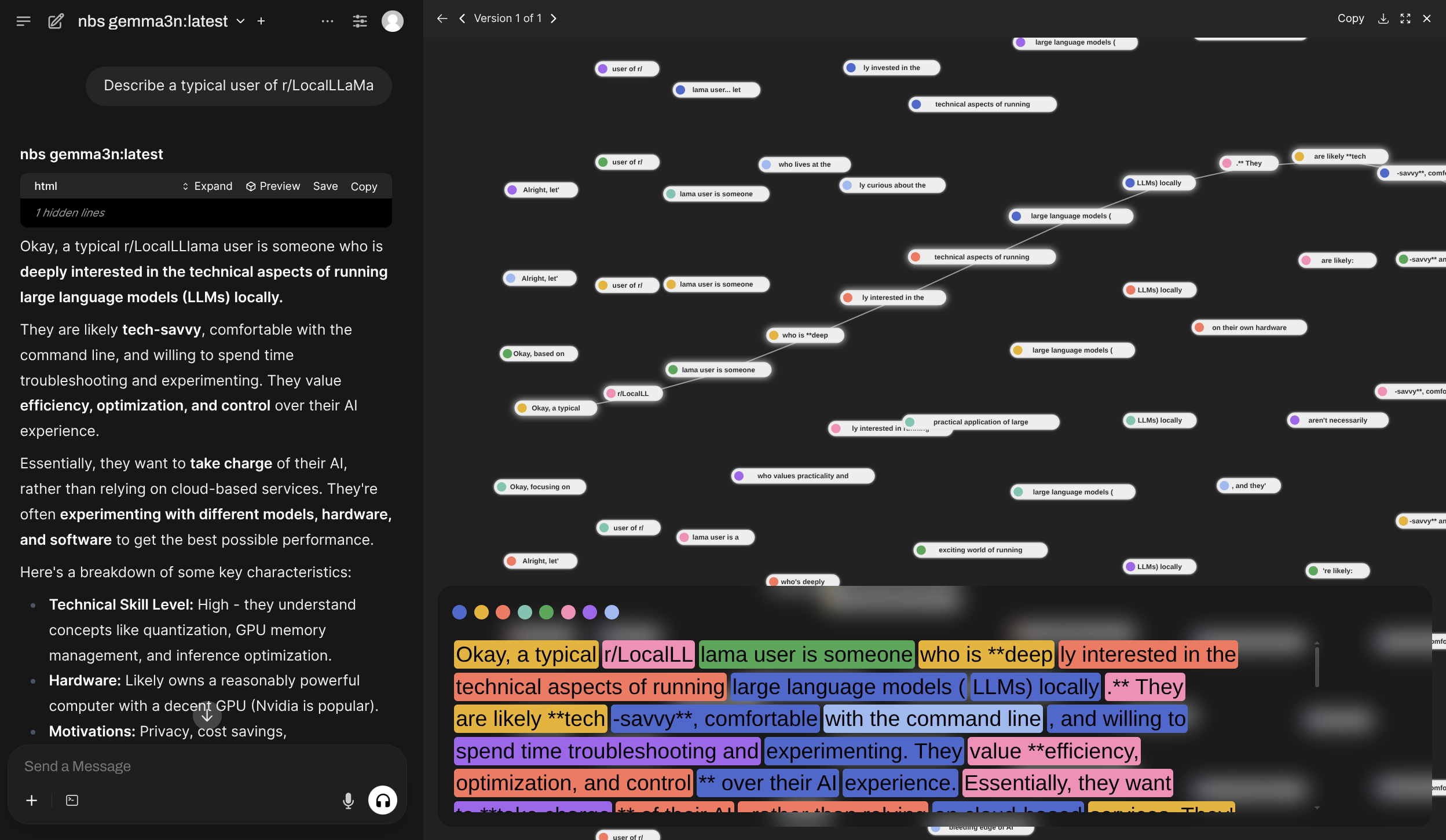

nbs
dnd promx

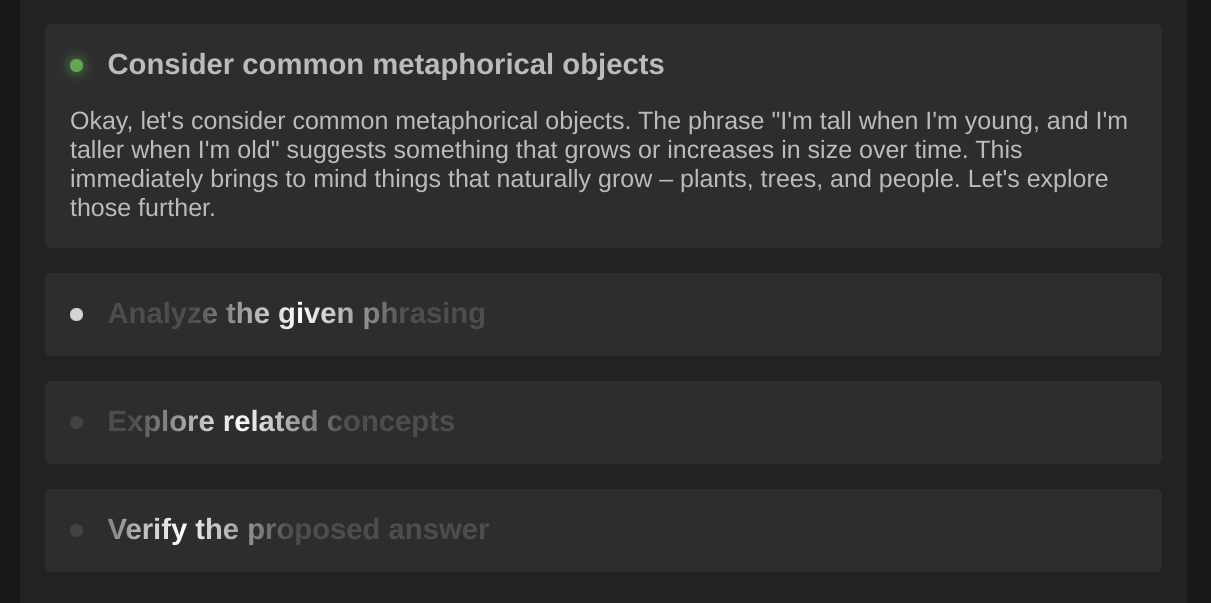

dot klmbr r0

Recent additions include web research flows — quickhop (single-hop search + read) and deephop (two-hop deep research) — and style modules caveman (terse output, HARBOR_BOOST_CAVEMAN_LEVEL) and ponytail (YAGNI build discipline, HARBOR_BOOST_PONYTAIL_LEVEL). Research budgets and triggers are configurable via HARBOR_BOOST_QUICKHOP_* / HARBOR_BOOST_DEEPHOP_* — see the modules reference for details.

Scripting

Creating custom modules is a first-class feature and one of the main use-cases for Harbor Boost.

# Simplest echo module replies back
# with the last message from the input
def apply(llm, chat):
  await llm.emit_message(prompt=chat.tail.content)

See the Custom Modules guide for more information on how to create your own modules and overview of available interfaces.

Starting

Start with Harbor

# [Optional] pre-build the image
harbor build boost

# Start the service
harbor up boost
  • Harbor connects boost with:
    • to all included LLM backends (ollama, llamacpp, vllm, etc.)
    • optillm as a backend
    • webui and dify frontends
# Get the URL for the boost service
harbor url boost

# Open default boost endpoint in the browser
harbor open boost

Start standalone

docker run \
  -e "HARBOR_BOOST_OPENAI_URLS=http://172.17.0.1:11434/v1" \
  -e "HARBOR_BOOST_OPENAI_KEYS=sk-ollama" \
  -e "HARBOR_BOOST_MODULES=dot;klmbr;promx;autotemp;markov;" \
  -e "HARBOR_BOOST_BASE_MODELS=true" \
  -e "HARBOR_BOOST_API_KEY=sk-boost" \
  -p 34131:8000 \
  ghcr.io/av/harbor-boost:latest

See standalone usage guide below.

Configuration

Configuration can be performed via Harbor CLI, harbor config, harbor env or the .env file.

All of the above ways are interchangeable and result in setting environment variables for the service.

Harbor CLI

Specific options can be set using harbor CLI:

# Enable/Disable a module
harbor boost modules add <module>
harbor boost modules rm <module>

# Set a parameter
harbor boost <module> <parameter>
harbor boost <module> <parameter> <value>

# See boost/module help entries
# for more info
harbor boost --help
harbor boost klmbr --help
harbor boost rcn --help
harbor boost g1 --help

# Additional OpenAI-compatible APIs to boost
harbor boost urls add http://localhost:11434/v1
harbor boost urls rm http://localhost:11434/v1
harbor boost urls rm 0 # by index
harbor boost urls ls

# Keys for the OpenAI-compatible APIs to boost. Semicolon-separated list.
# ⚠️ These are index-matched with the URLs. Even if the API doesn't require a key,
# you still need to provide a placeholder for it.
harbor boost keys add sk-ollama
harbor boost keys rm sk-ollama
harbor boost keys rm 0 # by index
harbor boost keys ls

Harbor Config

More options are available via harbor config.

# See all available options
harbor config ls boost

# Some of the available options
harbor config set boost.host.port 34131
harbor config set boost.api.key sk-boost
harbor config set boost.api.keys sk-user1;sk-user2;sk-user3

Below are additional configuration options that do not have an alias in the Harbor CLI (so you need to use harbor config directly). For example harbor config set boost.intermediate_output true.

Environment Variables

Most comprehensive way to configure boost is to use environment variables. You can set them in the .env file or via harbor env.

# Using harbor env
harbor env boost HARBOR_BOOST_API_KEY_MISTRAL sk-mistral

# Or open one of these in your text editor
open $(harbor home)/.env
open $(harbor home)/services/boost/override.env

See all supported environment variables in the Environment Variables Reference.

Workspace bind mount

Agentic Boost workflows can read, grep, and (optionally) write files in your project when Harbor bind-mounts a host directory into the Boost container. This is required for modules like autocheck and diffscope to verify cited paths and run workspace-aware audits.

Two settings work together:

  • HARBOR_BOOST_WORKSPACE — host directory Harbor mounts at /workspace in the container (empty defaults to ./services/boost/workspace)
  • HARBOR_BOOST_WORKSPACE_ROOT — in-container jail root for workspace file tools and module evidence checks (set to /workspace when using the bind mount above)
# From your project repo
harbor config set boost.workspace "$(pwd)"
harbor config set boost.workspace.root /workspace
harbor config update
harbor restart boost

You can also set HARBOR_BOOST_WORKSPACE in .env or via harbor env, or add a custom mount with harbor volumes add boost <host>:/workspace.

For workspace tools, module behavior (tools, autocheck, diffscope), and standalone Docker examples, see the modules reference — workspace setup.

API

boost works as an OpenAI-compatible API proxy. It'll query configured downstream services for which models they serve and provide "boosted" wrappers in its own API.

See the http catalog entry for some sample requests.

Authorization

When configured to require an API key, you can provide the API key in the Authorization or x-api-key header. All API surfaces (Chat Completions, Messages, Responses, Models) accept both styles.

<!-- All of these are accepted -->
Authorization: sk-boost
Authorization: bearer sk-boost
Authorization: Bearer sk-boost
x-api-key: sk-boost

GET /v1/models and GET /v1/models/{model_id}

List boosted models or retrieve a specific model. The response format is auto-detected based on client headers: Anthropic SDK clients (detected via anthropic-version header, or x-api-key without Authorization) receive Anthropic ModelInfo format (with data/has_more/first_id/last_id envelope and type: "model" items); all other clients receive OpenAI format. The single-model endpoint returns 404 in the appropriate error format when a model is not found.

boost will serve additional models as per enabled modules. For example:

[
  {
    // Original, unmodified model proxy
    "id": "llama3.1:8b"
    // ...
  },
  {
    // LLM with klmbr technique applied
    "id": "klmbr-llama3.1:8b"
    // ...
  },
  {
    // LLM with rcn technique applied
    "id": "rcn-llama3.1:8b"
    // ...
  }
]

POST /v1/chat/completions

Chat completions endpoint.

  • Proxies all parameters to the downstream API, so custom payloads are supported out of the box, for example json format for Ollama
  • Supports streaming completions and tool calls
POST http://localhost:34131/v1/chat/completions

{
  "model": "llama3.1:8b",
  "messages": [
    { "role": "user", "content": "Suggest me a random color" }
  ],
  "stream": true
}

GET /events/:stream_id

Listen to a specific stream of events (associated with a single completion workflow). The stream ID is a unique identifier of the LLM instance processing the request (you may decide to advertise/pass it to the client in the workflow's code).

GET /health

Health check endpoint. Returns { status: 'ok' } if the service is running.

Anthropic-compatible API

Boost exposes an Anthropic-compatible Messages API that translates between Anthropic and OpenAI formats. Enabled by default via HARBOR_BOOST_ANTHROPIC_COMPAT.

Incoming requests are converted to OpenAI format, routed through the normal Boost pipeline (model routing, modules, workflows), and responses are converted back to Anthropic format. Both streaming and non-streaming modes are supported.

Supported features:

  • Messages with text content
  • System prompts (top-level system parameter, string or array-of-blocks)
  • Images (base64 and URL sources)
  • Document content blocks (best-effort; image-type documents forwarded as images, others as text placeholders)
  • Tool use (function calling) with tool ID normalization (toolu_/call_ prefix conversion)
  • tool_result with is_error flag and image content (images forwarded as follow-up user message)
  • Tool choice (auto, any, none, named tool)
  • disable_parallel_tool_use mapped to parallel_tool_calls: false
  • Stop sequences (OpenAI backends strip stop sequences from output; Boost infers stop_sequence vs end_turn by checking the generated text)
  • Extended thinking (thinking.type: enabled maps to max_completion_tokens for backends; responses include thinking content blocks with required signature: "" field). Adaptive thinking (thinking.type: adaptive) maps to max_completion_tokens = max_tokens, letting the backend decide how much reasoning to use. output_config.effort is also accepted as a reasoning-effort signal when no explicit thinking config is present. Streaming emits signature_delta events for SDK compatibility.
  • max_tokens validated as a positive integer (rejects non-numeric, zero, and negative values)
  • top_k passthrough (best-effort for backends that support it, e.g. vLLM, Ollama)
  • anthropic-beta header accepted (parsed and logged, recognized flags echoed back in response)
  • anthropic-version response header on all responses
  • @boost_ params via metadata dict (workflow selection, module config forwarded to the proxy pipeline)
  • Request parameter passthrough: seed, frequency_penalty, presence_penalty, logit_bias, logprobs, top_logprobs, response_format, n are forwarded to the backend when present in the request body (not part of the Anthropic spec, but useful for backends that support them)
  • Streaming (SSE with Anthropic event types: message_start, ping, content_block_start, content_block_delta, content_block_stop, message_delta, message_stop); optimized for performance with direct dict access on the hot path
  • SSE streams include a retry: 3000 interval for client reconnection, periodic keep-alive comments (every 15 s) to prevent proxy/load-balancer idle-timeout disconnects, and standard headers (Cache-Control: no-cache, Connection: keep-alive, X-Accel-Buffering: no)
  • Mid-stream error handling (if the backend stream fails, a sanitized error is emitted as a text block and the SSE envelope is properly closed; raw exception details are logged server-side only). BackendError exceptions from the backend are caught during streaming with status-code-specific messages (429 becomes "Rate limit exceeded", 5xx becomes "Backend server error").
  • Backend error mapping (429 mapped to rate_limit_error, 5xx to api_error) with rate limit header forwarding (retry-after, x-ratelimit-*)
  • cache_creation_input_tokens and cache_read_input_tokens fields included in usage (always 0, for SDK compatibility)
  • Token counting (local estimation via tiktoken or chars/4 heuristic; no backend call needed)
  • Authentication returns 401 (not 403) with Anthropic-format error body on failure; case-insensitive Bearer prefix stripping
  • Message batches API stubs with informative error messages guiding callers to use /v1/messages (create/list return 501, get/results/cancel return 404)

Authentication

The same API keys configured for the OpenAI-compatible API apply. You can authenticate using either header style:

x-api-key: sk-boost
Authorization: Bearer sk-boost

POST /v1/messages

Anthropic Messages API endpoint. Accepts the same request format as the Anthropic API.

POST http://localhost:34131/v1/messages

{
  "model": "llama3.1",
  "max_tokens": 1024,
  "messages": [
    { "role": "user", "content": "Tell me about LLMs" }
  ]
}

Streaming is supported via "stream": true in the request body. When streaming, the response uses Anthropic SSE event types: message_start, content_block_start, content_block_delta, content_block_stop, message_delta, message_stop.

POST /v1/messages/count_tokens

Returns the input token count for a set of messages without generating a completion. Token counting is performed locally using tiktoken (cl100k_base encoding) with a chars/4 heuristic fallback, so no backend call is made.

POST http://localhost:34131/v1/messages/count_tokens

{
  "model": "llama3.1",
  "messages": [
    { "role": "user", "content": "Tell me about LLMs" }
  ]
}

Response:

{ "input_tokens": 12 }

Example: Anthropic Python SDK

Point the Anthropic SDK at Boost's URL:

import anthropic

client = anthropic.Anthropic(
    base_url="http://localhost:34131",
    api_key="sk-boost",  # or any valid Boost API key
)

message = client.messages.create(
    model="llama3.1",
    max_tokens=1024,
    messages=[
        {"role": "user", "content": "Hello!"}
    ],
)

print(message.content[0].text)

Streaming:

with client.messages.stream(
    model="llama3.1",
    max_tokens=1024,
    messages=[{"role": "user", "content": "Hello!"}],
) as stream:
    for text in stream.text_stream:
        print(text, end="", flush=True)

OpenAI Responses API

Boost exposes an OpenAI Responses API-compatible endpoint that translates between the Responses API format and Chat Completions. Enabled by default via HARBOR_BOOST_RESPONSES_API.

Incoming requests are converted to Chat Completions format, routed through the normal Boost pipeline (model routing, modules, workflows), and responses are converted back to Responses API format. Both streaming and non-streaming modes are supported.

Supported features:

  • String input (single user message) and array input (message items, function call outputs, function call items for multi-turn context)
  • Content parts: input_text, input_image (URL and base64 with detail), input_audio, input_file (graceful degradation to text placeholder)
  • reasoning and computer_call_output input items silently skipped (not supported)
  • Instructions (mapped to a system message, echoed back in the response)
  • Function tools (with name, description, parameters) and tool ID normalization (call_ prefix)
  • web_search / web_search_preview tool mapped to Harbor's web_search function; unsupported built-in tool types (file_search, code_interpreter, computer_use_preview, image_generation, mcp, local_shell, etc.) logged as warnings and skipped
  • Tool choice (auto, none, required, named function); string values pass through directly
  • parallel_tool_calls passthrough
  • max_output_tokens, temperature, top_p
  • user parameter passthrough (echoed in the response)
  • include parameter accepted without error (SDK compatibility; not acted on)
  • Request parameter passthrough: seed, frequency_penalty, presence_penalty, logit_bias, logprobs, top_logprobs, n are forwarded to the backend when present (not part of the Responses API spec, but useful for backends that support them)
  • service_tier parameter accepted without error (SDK compatibility; not acted on)
  • @boost_ params via metadata dict (workflow selection, module config forwarded to the proxy pipeline)
  • Reasoning (reasoning.effort mapped to backend reasoning_effort; reasoning.summary/reasoning.generate_summary forwarded as reasoning_summary; responses include reasoning output items with status field and summary text). The reasoning config from the request is echoed in the response.
  • Structured outputs via text.format (json_schema and json_object mapped to response_format)
  • Refusal handling (backend refusals emitted as refusal content parts with streaming refusal.delta / refusal.done events)
  • Annotations from backends: OpenAI url_citation, file_citation, file_path annotations and Perplexity-style citations (flat URL list) are extracted and included in output text content parts
  • Truncation parameter (accepted and reflected; backends manage their own context windows)
  • store (always false) and metadata (passthrough)
  • completed_at timestamp set on responses with completed status
  • incomplete_details with reason (max_output_tokens or content_filter) when status is incomplete
  • Streaming with full Responses API event lifecycle: response.created, response.in_progress, output item/content part events, .done events for text/function args, and terminal events (response.completed, response.incomplete, or response.failed); optimized for performance with direct dict access on the hot path
  • All streaming events include sequence_number (monotonically increasing) and text events include logprobs: []
  • SSE streams include a retry: 3000 interval (embedded in the first event to avoid data-less SSE frames that crash some SDKs), periodic keep-alive comments (every 15 s), and standard headers (Cache-Control: no-cache, Connection: keep-alive, X-Accel-Buffering: no)
  • Mid-stream error handling (sanitized errors emitted as text content; stream terminates with response.failed; raw details logged server-side only). BackendError exceptions are caught during streaming with status-code-specific messages.
  • Backend error mapping (429 mapped to rate_limit_error, 5xx to server_error) with rate limit header forwarding (retry-after, x-ratelimit-*)
  • Authentication returns 401 with OpenAI-format error body on failure; case-insensitive Bearer prefix stripping
  • GET/DELETE/cancel stubs with informative error messages and response IDs (returns 404 since responses are not persisted)

Authentication

The same API keys configured for the OpenAI-compatible API apply. Both Authorization and x-api-key headers are supported:

Authorization: Bearer sk-boost
x-api-key: sk-boost

POST /v1/responses

OpenAI Responses API endpoint.

POST http://localhost:34131/v1/responses

{
  "model": "llama3.1",
  "input": "Tell me about LLMs"
}

Array input with structured messages:

POST http://localhost:34131/v1/responses

{
  "model": "llama3.1",
  "instructions": "You are a helpful assistant.",
  "input": [
    {
      "type": "message",
      "role": "user",
      "content": "Tell me about LLMs"
    }
  ]
}

The response is a response object with output items:

{
  "id": "resp_abc123",
  "object": "response",
  "status": "completed",
  "model": "llama3.1",
  "output": [
    {
      "type": "message",
      "role": "assistant",
      "content": [
        {
          "type": "output_text",
          "text": "LLMs are..."
        }
      ]
    }
  ],
  "usage": {
    "input_tokens": 12,
    "output_tokens": 48,
    "total_tokens": 60
  }
}

Streaming is supported via "stream": true in the request body. When streaming, the response uses Responses API SSE event types: response.created, response.in_progress, response.output_item.added, response.content_part.added, response.output_text.delta, response.output_text.done, response.function_call_arguments.delta, response.function_call_arguments.done, response.content_part.done, response.output_item.done, and a terminal event (response.completed, response.incomplete, or response.failed). Reasoning streams additionally emit response.reasoning_summary_part.added, response.reasoning_summary_text.delta, response.reasoning_summary_text.done, and response.reasoning_summary_part.done.

Example: OpenAI Python SDK

Point the OpenAI SDK at Boost's URL and use the responses.create() method:

from openai import OpenAI

client = OpenAI(
    base_url="http://localhost:34131/v1",
    api_key="sk-boost",  # or any valid Boost API key
)

response = client.responses.create(
    model="llama3.1",
    input="Hello!",
)

print(response.output[0].content[0].text)

Streaming:

stream = client.responses.create(
    model="llama3.1",
    input="Hello!",
    stream=True,
)

for event in stream:
    if event.type == "response.output_text.delta":
        print(event.delta, end="", flush=True)

With tools:

response = client.responses.create(
    model="llama3.1",
    input="What is the weather in Paris?",
    tools=[{
        "type": "function",
        "name": "get_weather",
        "description": "Get current weather",
        "parameters": {
            "type": "object",
            "properties": {
                "location": {"type": "string"}
            },
            "required": ["location"],
        },
    }],
)

for item in response.output:
    if item.type == "function_call":
        print(f"Call: {item.name}({item.arguments})")

Standalone usage

You can run boost as a standalone Docker container. See harbor-boost package in GitHub Container Registry.

# [Optional] pre-pull the image
docker pull ghcr.io/av/harbor-boost:latest

# Start the container
docker run \
  # 172.17.0.1 is the default IP of the host, when running on Linux
  # So, the example below is for local ollama
  -e "HARBOR_BOOST_OPENAI_URLS=http://172.17.0.1:11434/v1" \
  -e "HARBOR_BOOST_OPENAI_KEYS=sk-ollama" \
  # Configuration for the boost modules
  -e "HARBOR_BOOST_MODULES=klmbr;rcn;g1" \
  -e "HARBOR_BOOST_KLMBR_PERCENTAGE=60" \
  # [Optional] mount folder with custom modules
  -v /path/to/custom_modules/folder:/app/custom_modules \
  -p 8004:8000 \
  ghcr.io/av/harbor-boost:latest

# In the separate terminal (or detach the container)
curl http://localhost:8004/health
curl http://localhost:8004/v1/models

You can take a look at a boost-starter repo for a minimal example repository to get started.

Configuration

See Environment Variables Reference.

Home | CLI Reference | Services | Adding New Service | Compatibility

Clone this wiki locally
